Generator Voltage Transformer 45KVA 220V 480V Three Phase/Single Phase Transformer

Name: Generator Voltage Transformer 45KVA 220V 480V Three PhaseSingle Phase Transformer
Brand: SHLEIPUSI Or Support OEM/ODM Service
Price: 1 USD

Quality Generator Voltage Transformer 45KVA 220V 480V Three Phase/Single Phase Transformer for sale

Brand Name : SHLEIPUSI Or Support OEM/ODM Service

Model Number : SG-40KVAKVA Or Customized

Certification : CE;ISO9001;UL

Place of Origin : Shanghai

MOQ : 1

Price : 1 pc≤Qty≤5 pcs 595USD; 5 pcs＜Qty≤100 pcs 580USD; 100pcs＜Qty 575USD

Payment Terms : T/T,D/P,D/A,L/C,Western Union,Alipay,Wechat pay

Supply Ability : 1000000PCS

Delivery Time : 1 pc≤Qty≤5 pcs 1-7 working days; 5 pcs＜Qty≤100 pcs 7-14 working days; 100pcs＜Qty More than 14 working days

Packaging Details : Non-fumigation plywood case ; Reference packing size: 56X46X70CM; Reference weight: 100KG

Product name : 380/220V Three Phase Industrial Power Transformer

Place of origin : Shanghai, PRC

Rated capacity : 40KVA Or Customized

Product model : SG-40KVA Or Customized

Rated input voltage : Three phase 220V or Customized

Rated output voltage : Three phase 380V or customized

Output precision : ±2%

Working temperature : －15℃~＋45℃

Insulation resistance : ≥5MΩ

Contact Now

380/220V Three Phase Industrial Power Transformer | SHLEIPUSI Custom Industrial Transformer Manufacturer

Contact Information

Tel/WeChat: +86 15926315252 | Email: daniel@shlepus.com | WhatsApp: +86 18979230829

Product Introduction

Our 380/220V Three Phase Industrial Power Transformer is a high-reliability, energy-efficient power conversion solution purpose-built for global industrial applications. Engineered for stable 380V-220V three-phase voltage regulation, this SG-series transformer is perfectly suited for factory power distribution, CNC machine tools, photovoltaic systems, power transmission equipment, precision instruments, generators, EV charging stations, laser cutting machines, air compressors, and medical equipment. Manufactured in Shanghai, China, with strict adherence to international safety and environmental standards, we offer full customization to meet diverse project requirements across the world.

Key Features & Competitive Advantages

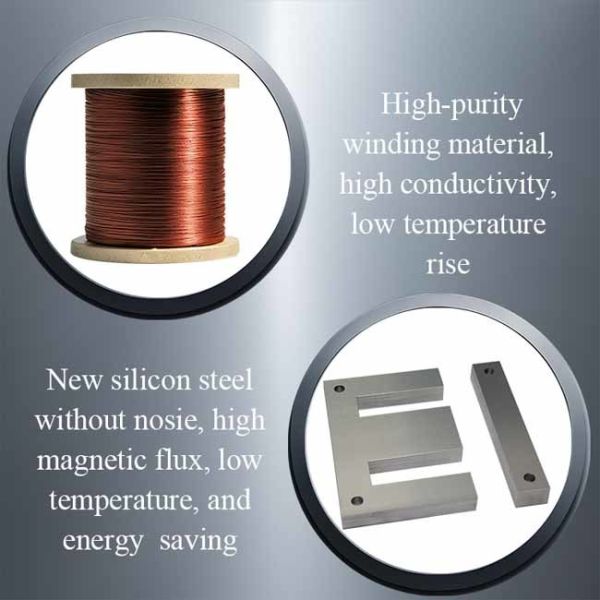

High Efficiency & Energy Saving: Featuring a high-permeability low-noise silicon steel core and high-purity winding material, our transformer delivers ≥90% working efficiency, low energy loss, low temperature rise, and <55dB noise during full-capacity operation, cutting long-term operational costs for industrial users.
Superior Safety & Insulation: Equipped with a safety trip lock, high-insulation terminals, and premium nylon insulation frame, it withstands 3500V voltage tests and 2500V di-electrical strength tests, eliminating breakdown risks and ensuring safe operation in harsh industrial environments.

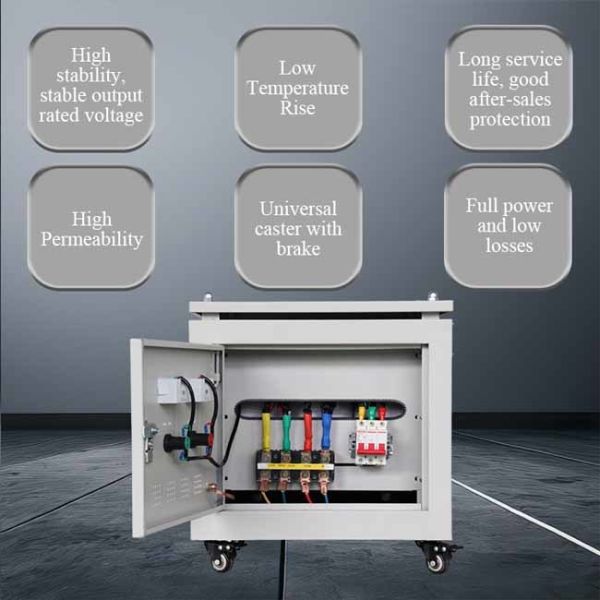

Intuitive & User-Friendly Design: The integrated digital display provides clear real-time data and working status monitoring via input/output indicators. It also comes with brake-equipped universal wheels, convenient wiring terminals, and customizable IP23-IP64 protection ratings for flexible on-site deployment.
Efficient Heat Dissipation: Porous heat emission holes with optional cooling fan enable rapid heat dissipation, lowering operating temperature and extending the transformer’s service life significantly.

Why Choose SHLEIPUSI

As a professional industrial transformer manufacturer, we deliver tailored solutions for electrical engineers, factory operators, and industrial clients worldwide. We support full OEM/ODM services, including custom parameters, appearance, LOGO printing, packaging, and free professional product photography for bulk orders, with an MOQ of just 1 unit to support trial orders. Our monthly production capacity reaches 10,000 units for low-power models and 2,000 units for high-power transformers, ensuring stable bulk supply. Every unit undergoes strict pre-shipment quality testing, with comprehensive after-sales support including lifetime free technical guidance, on-site installation services, and warranty coverage for quality defects. We also offer flexible global shipping via sea, air, express, and railway, with all mainstream international trade terms supported.

Technical Specifications

Parameter	Standard Value	Customization Support
Product Name	380/220V Three Phase Industrial Power Transformer	Full Custom Available
Model/Rated Capacity	SG-40KVA / 40KVA	Fully Customizable
Rated Voltage	3 Phase 220V Input / 380V Output	Wide Voltage Range
Working Frequency	50/60Hz	Customizable
Output Precision	±2%	-
Insulation Class	F	-
Protection Class	IP23/IP44/IP54/IP64	Customizable
Working Temperature	-15℃ ~ +45℃	-
Working Efficiency	≥90%	-

Generator Voltage Transformer 45KVA 220V 480V Three Phase/Single Phase Transformer

Frequently Asked Questions

What’s your lead time? Normally 3-7 working days for standard products, 10 days for small batches, 20-30 days for bulk and customized orders.
How do you control product quality? We implement full-process quality inspection from raw material incoming to finished product manufacturing; only qualified units are shipped.
What are your payment terms? 30% deposit for standard products, 50% advance payment for customized products, with the balance settled before shipment.
Do you offer installation technical support? Yes, our professional team provides video guidance, lifetime free telephone support, and on-site installation by our engineers.
What packaging do you use? Reinforced wooden cases for large units, high-strength cartons for small products, with custom packaging available upon request.
Do you accept OEM/ODM services? Yes, we support full OEM/ODM, including custom LOGO, brand name, parameters, and appearance for qualified bulk orders.
What is your main market? Our products are sold globally, covering Central Asia, East Asia, South Asia, Africa, South America, and North America.
What is your production capacity? 10,000 pcs/month for low-power transformers, 2,000 pcs/month for high-power industrial models.
What is your minimum order quantity? The MOQ for this 380/220V three phase industrial power transformer is 1 set, supporting sample and trial orders.
